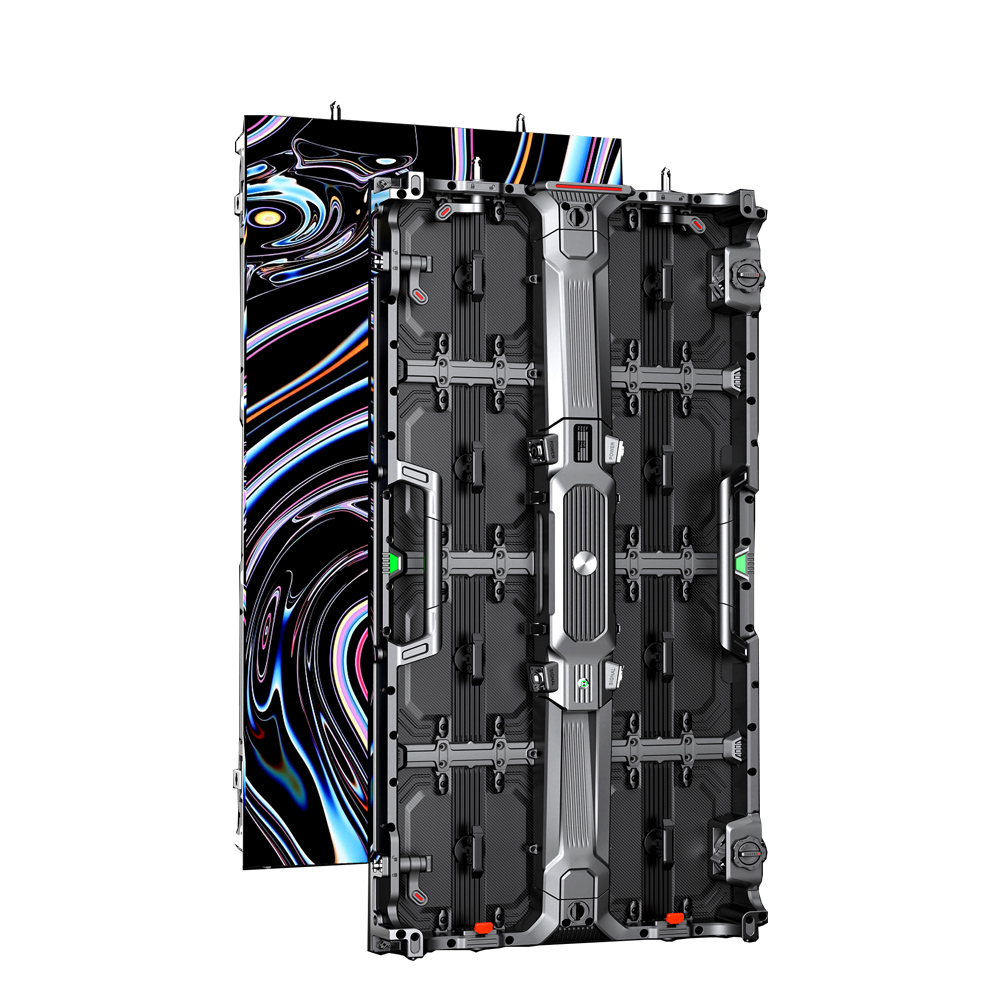

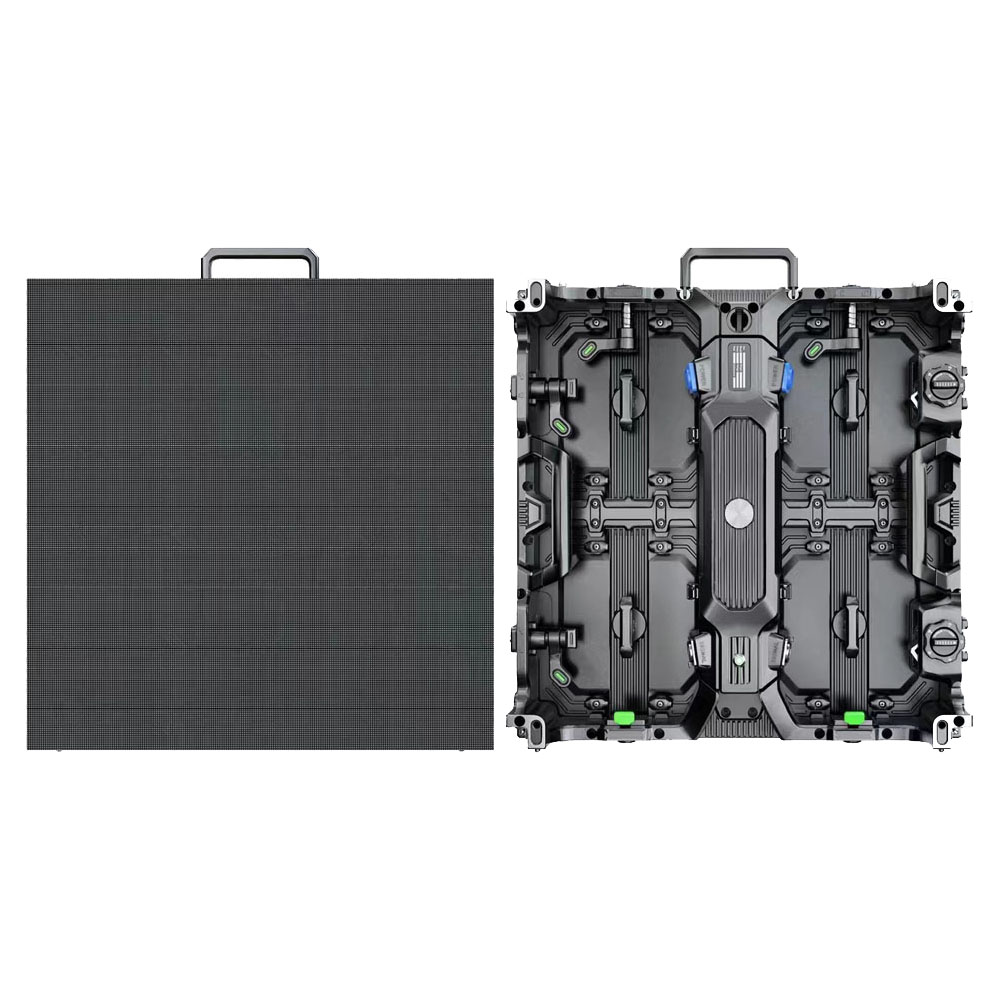

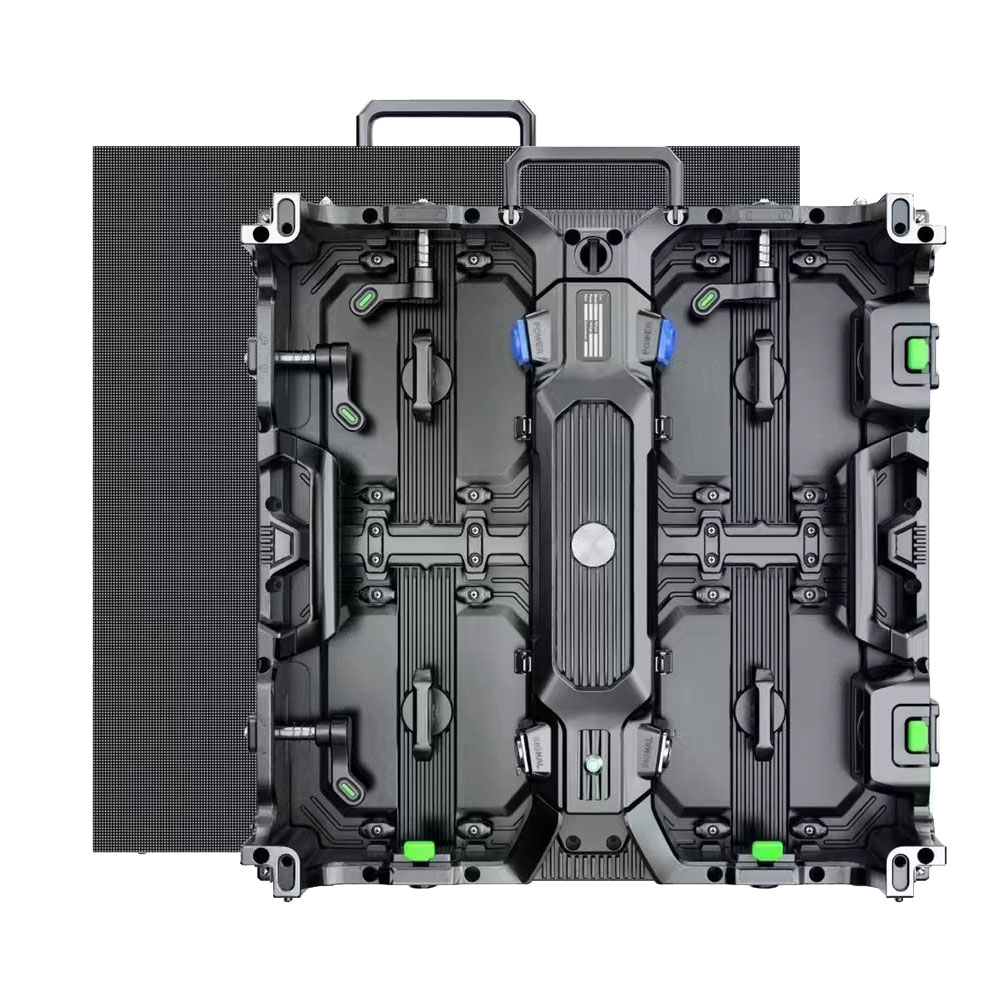

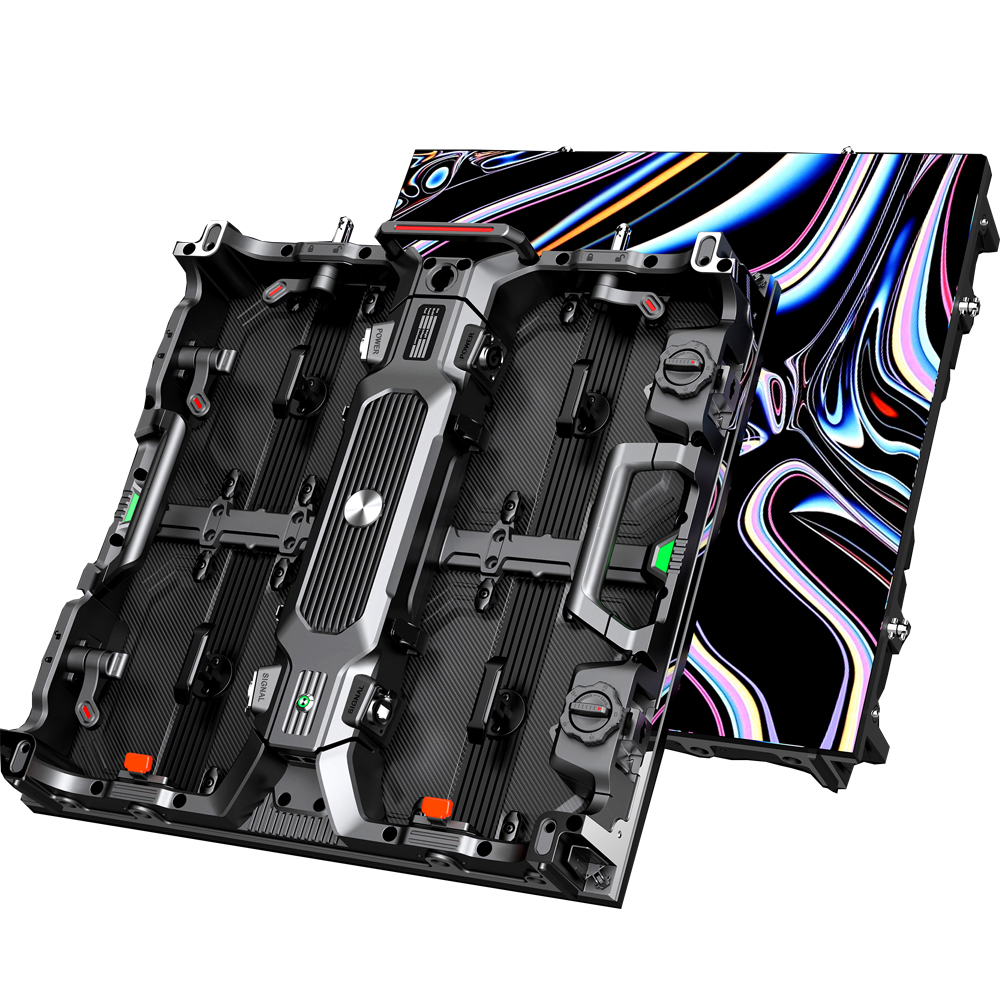

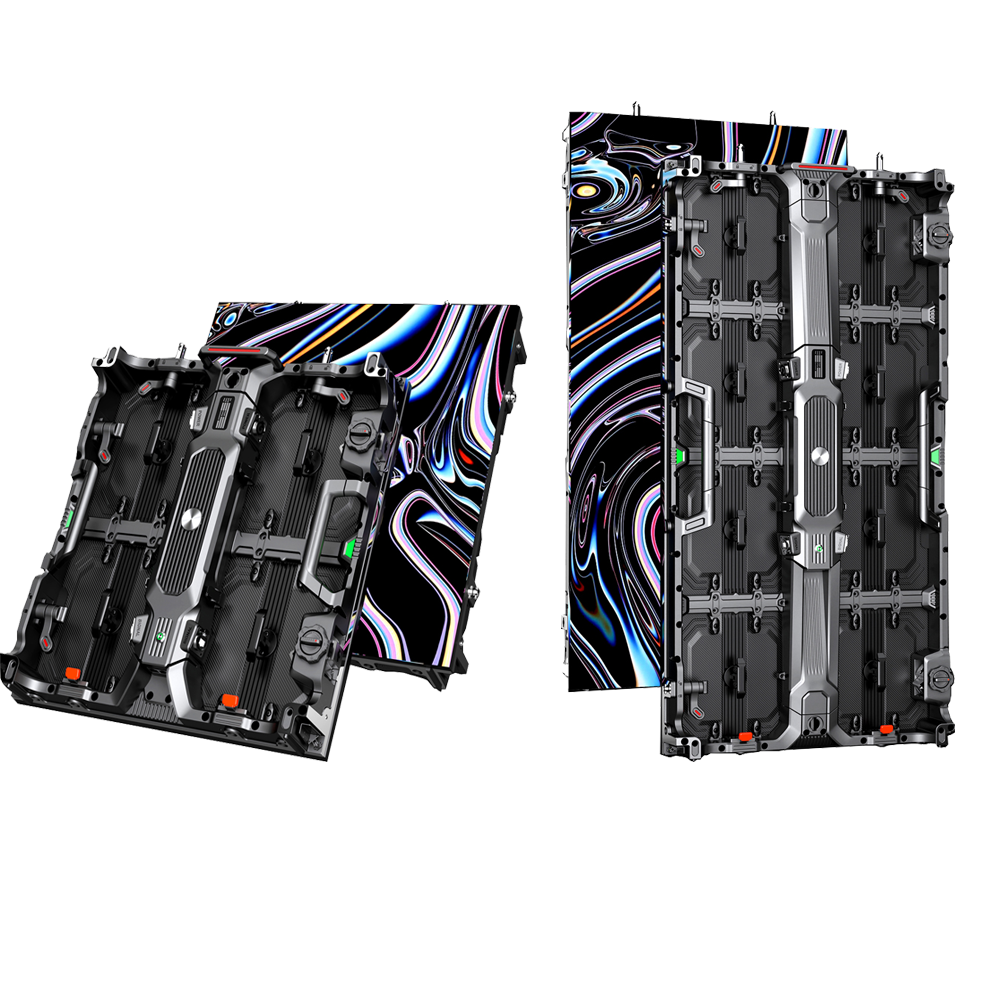

It can be maintained both front and back, seamlessly spliced, and adopts a hard connection method for ultra-light and ultra-thin materials.
The arc-shaped lock is optional, and the box is made of die-casting aluminum, which has high strength, toughness, accuracy, and is not easy to deform. It saves labor for transportation and has good heat dissipation effect.
| lndoor rental | Pixel Pitch | Module Size | Weight on screen body | Module resolution | Scanning | IC/refresh | dots/㎡ |
| P2.604 | 250*250 | <8kg/㎡ | 96*96 | 24 | 2037/1920 | 147456 | |
| P2.976 | 250*250 | 84*84 | 21 | 2037/1920 | 112896 | ||
| P3.91 | 250*250 | 64*64 | 16 | 2037/1920 | 65536 | ||
| P4.81 | 250*250 | 52*52 | 13 | 2037/1920 | 43264 | ||
| outdoor rental | P2.976 | 250*250 | 84*84 | 21 | 2037/1920 | 112896 | |
| P3.91 | 250*250 | 64*64 | 16 | 2037/1920 | 65536 | ||
| P4.81 | 250*250 | 52*52 | 13 | 2037/1920 | 43264 | ||
| lndia lndoor | P3 | 288*288 | 96*96 | 24 | 2037/1920 | 111111 | |
| P3.79 | 288*288 | 76*76 | 19 | 2037/1920 | 69618 | ||
| P3.84 | 288*288 | 75*75 | 19 | 2037/1920 | 67816 | ||
| P4.81 | 288*288 | 60*60 | 15 | 2037/1920 | 43402 | ||
| outdoor lndia | P3.79 | 288*288 | 76*76 | 19 | 2037/1920 | 69618 | |
| P3.84 | 288*288 | 75*75 | 19 | 2037/1920 | 67816 | ||
| P4.8 | 288*288 | 60*60 | 15 | 2037/1920 | 43402 | ||
| P6 | 288*288 | 48*48 | 6 | 2037/1920 | 27777 | ||
| Power supply | Nandian Jingyin | ||||||
| Plug-in Material | Copper | ||||||
| Wire & Cable | International multi-core wire, can pass relative certification | ||||||
| PCB board | International A-class material | ||||||
| Protection grade | IP65+ | ||||||
| Flatness | Seam between modules is <0.1mm | ||||||
| AVG lifespan | Working time >100,000 hours | ||||||
| Dots out of control | <1/10,000 (under non-stop working situation) | ||||||
| Power supply requirement | 220V±10%；AC50HZ，three-phase five-wire system | ||||||
| Non-stop working time | >72 hours | ||||||
| Warranty | 1 year | ||||||
| Working Condition | -10℃～+45℃，10%～80%RH | ||||||
| LED | R-G-B applies to original sealed led lamp | ||||||
| Video input | Multiple compatible with PAL/NTSC TV/HDTV/SDTV signal | ||||||
| Software Port | WINDOWS7、NT、XP、2000 | ||||||
| Display Mode | 32-bit genuine Full Color | ||||||
| AVG trouble-free operation time | >10,000hours | ||||||
| Lamp NG rate | <1/10,000, and in discrete distribution | ||||||
| Control System | Nova system, synchronize/asynchronous | ||||||
Our main products are all kinds of indoor and outdoor display screens. Including rental series, floor tile screen, transparent screen, small pitch, flexible screen and outdoor fixed series
If you got a project to handle, please provide below information and our experts will get back to you as soon as possible.
Our factory and headquarter are located in Shenzhen, welcome to visit and inspect the factory. All in order to make customers more worry-free and effort-saving, let us work together to create a better future.
