| Dance floor LED display parameter ： | ||||||
| Part | Item | P2.6 | P2.976 | P3.91 | P4.81 | P6.25 |
| /Module pixel | Arrangement | Vertical arrange | Vertical arrange | Vertical arrange | Vertical arrange | Vertical arrange |
| /Pixel pitch | 2.6mm | 2.976mm | 3.91mm | 4.81mm | 6.25mm | |
| Color | 1R1G1B（3in1） | 1R1G1B（3in1） | 1R1G1B（3in1） | 1R1G1B（3in1） | 1R1G1B（3in1） | |
| LED lamp | SMD1415（3：6：1） | SMD1415（3：6：1） | SMD1415（3：6：1） | SMD1921（3：6：1） | SMD1921（3：6：1） | |
| Density | 147456dot/㎡ | 112896dot/㎡ | 65536dot/㎡ | 43264dot/㎡ | 25600dot/㎡ | |
| Module size/cabinet size | /Module size | 250×250(mm) | 250×250(mm) | 250×250(mm) | 250×250(mm) | 250×250(mm) |
| /Module resolution | 96×96(dot) | 84×84(dot) | 64×64(dot) | 52×52(dot) | 40×40(dot) | |

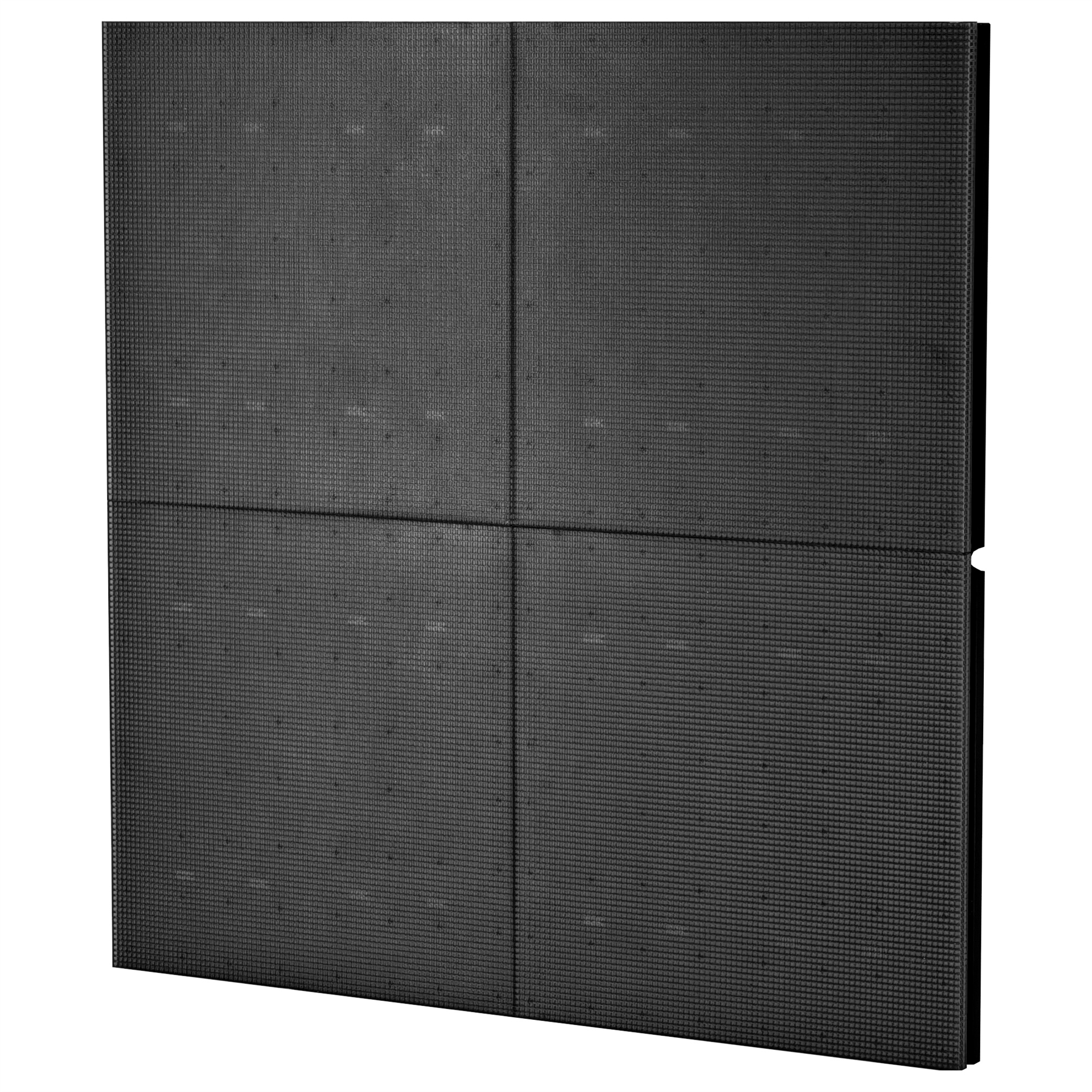

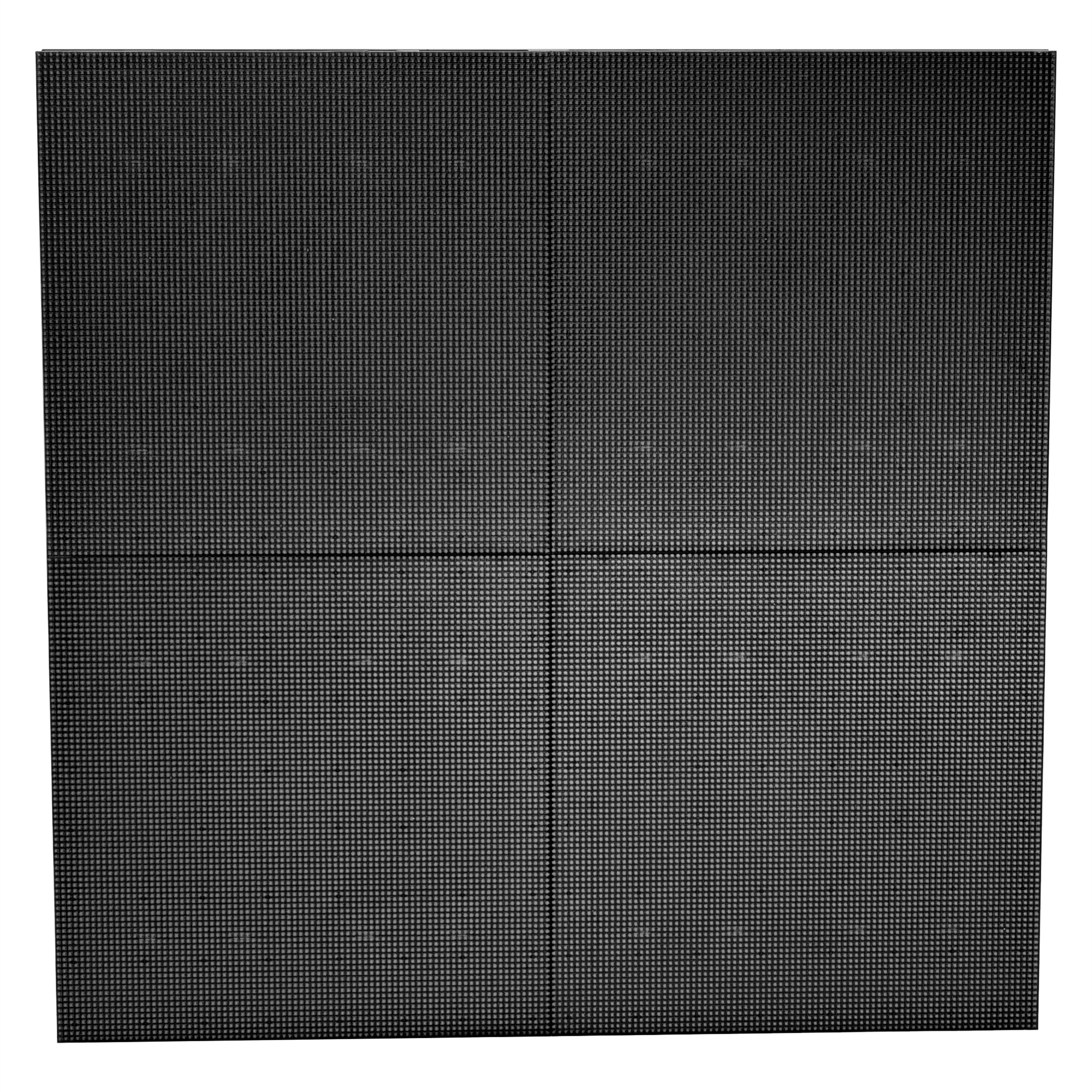

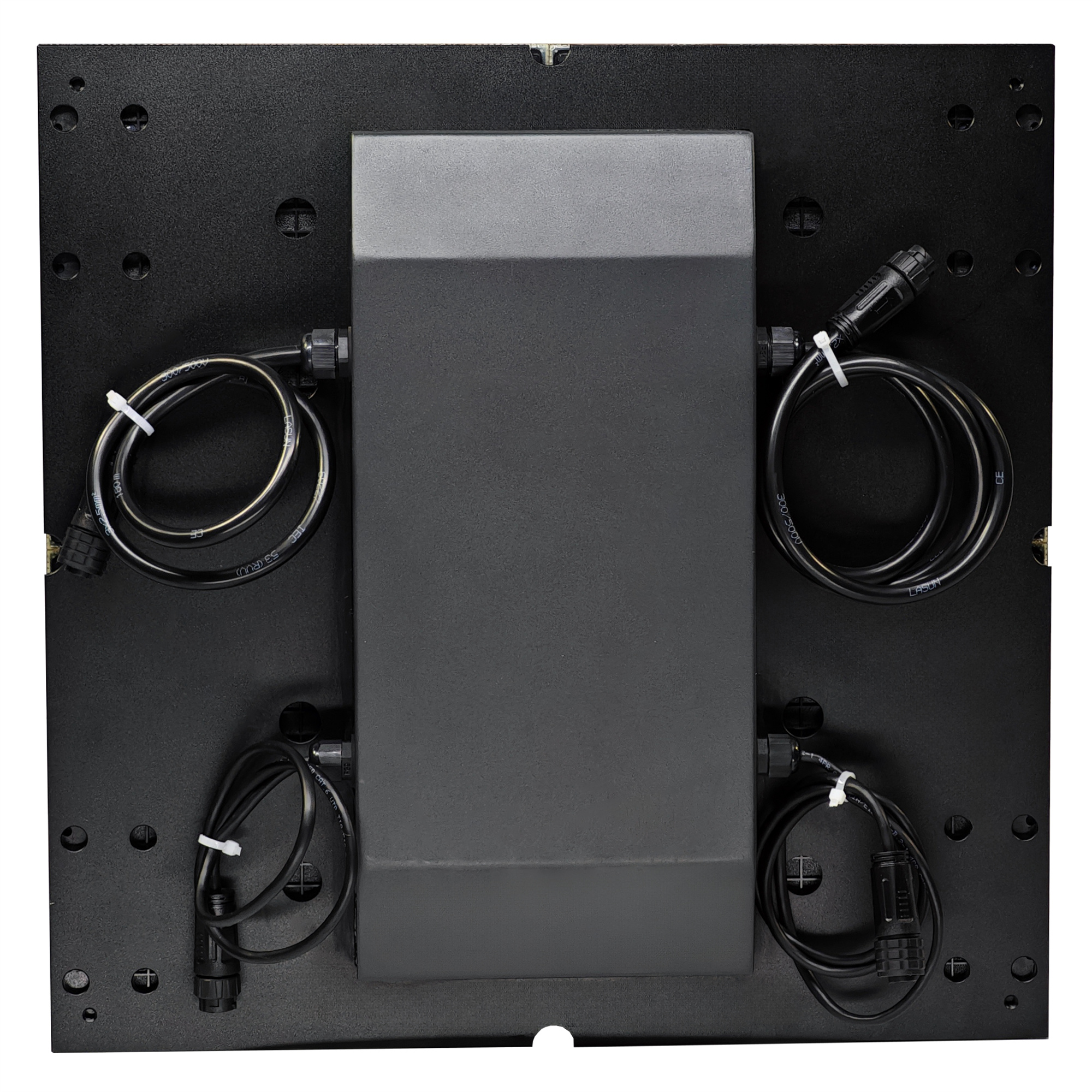

| Cabinet size | 500（w）×500（h）mm | 500（W）×500（H）mm | 500（W）×500（H）mm | 500（W）×500（H）mm | 500（W）×500（H）mm | |
| Cabinet weight | 11KG/个pcs | 11KG/pcs | 11KG/pcs | 11KG/pcs | 11KG/pcs | |
| Cabinet thickness | 7cm（include the module thickness） | 7cm（include the module thickness） | 7cm（include the module thickness） | 7cm（include the module thickness） | 7cm（include the module thickness） | |
| Screen Parameter | Out of control pixel | ≤3/100000 | ≤3/100000 | ≤3/100000 | ≤3/100000 | ≤3/100000 |
| Module splicing gap | ≤ 2㎜ | ≤ 2㎜ | ≤ 2㎜ | ≤ 2㎜ | ≤ 2㎜ | |
| Best view distance | 5-60m | 5-60m | 5-60m | 5-60m | 5-60m | |
| View angle | level140°/H140°，vertical140°/V140° | level140°/H140°，vertical140°/V140° | level140°/H140°,vertical140°/V140° | level140°/H140°，vertical140°/V140° | level140°/H140°，vertical140°/V140° | |
| Screen flatness | ≤ 2㎜ | ≤ 2㎜ | ≤ 2㎜ | ≤ 2㎜ | ≤ 2㎜ | |
| Ink color screen | No reflection | No reflection | No reflection | No reflection | No reflection | |
| Brightness uniformity | uniformity1：1 | uniformity1：1 | uniformity1：1 | uniformity1：1 | uniformity1：1 | |
| Current Supply | Usage | Indoor and Outdoor | Indoor and Outdoor | Indoor and Outdoor | Indoor and Outdoor | Indoor and Outdoor |
| Humidity | 10% -90% RH | 10% -90% RH | 10% -90% RH | 10% -90% RH | 10% -90% RH | |
| Temperature | -20 至 65 ℃ | -20 至 65 ℃ | -20 至 65 ℃ | -20 至 65 ℃ | -20 至 65 ℃ | |
| Max consumption | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ | |
| Average consumption | 480W/㎡ | 480W/㎡ | 480W/㎡ | 400W/㎡ | 350W/㎡ | |
| Control System | Control host operating system | XPcomputer+Control software hardware+Play software and hardware | XPcomputer+Control software hardware+Play software and hardware | XPcomputer+Control software hardware+Play software and hardware | XPcomputer+Control software hardware+Play software and hardware | XPcomputer+Control software hardware+Play software and hardware |
| Control method | Sync control with computer VGA | Sync control with computer VGA | Sync control with computer VGA | Sync control with computer VGA | Sync control with computer VGA | |
| Control system | DVI Graphics card + screen control card + Optical fiber transmission | DVI Graphics card + screen control card + Optical fiber transmission | DVI Graphics card + screen control card + Optical fiber transmission | DVI Graphics card + screen control card + Optical fiber transmission | DVI Graphics card + screen control card + Optical fiber transmission | |
| Input method | PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI | PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI | PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI | PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI | PAL/NTSC/SECAM, S-Video；VGA；RGB；Composite Video；SDI | |
Our main products are all kinds of indoor and outdoor display screens. Including rental series, floor tile screen, transparent screen, small pitch, flexible screen and outdoor fixed series
