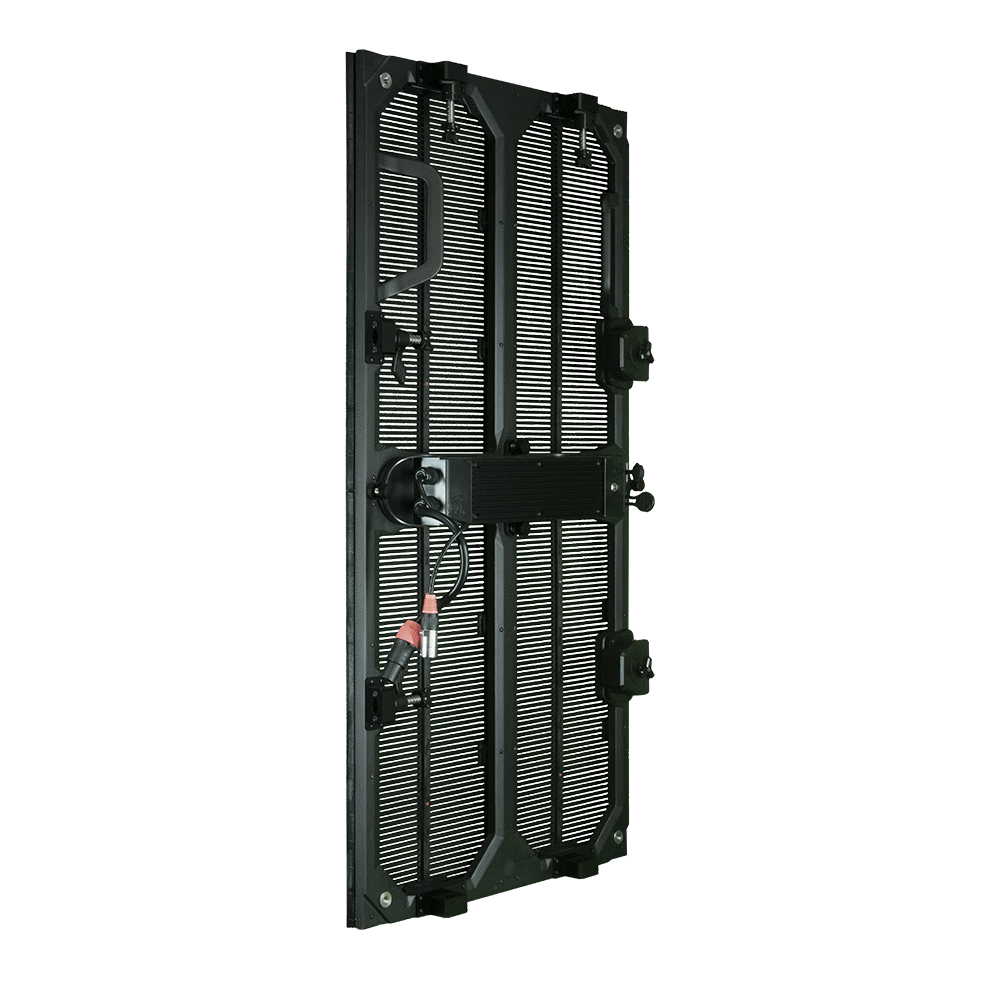

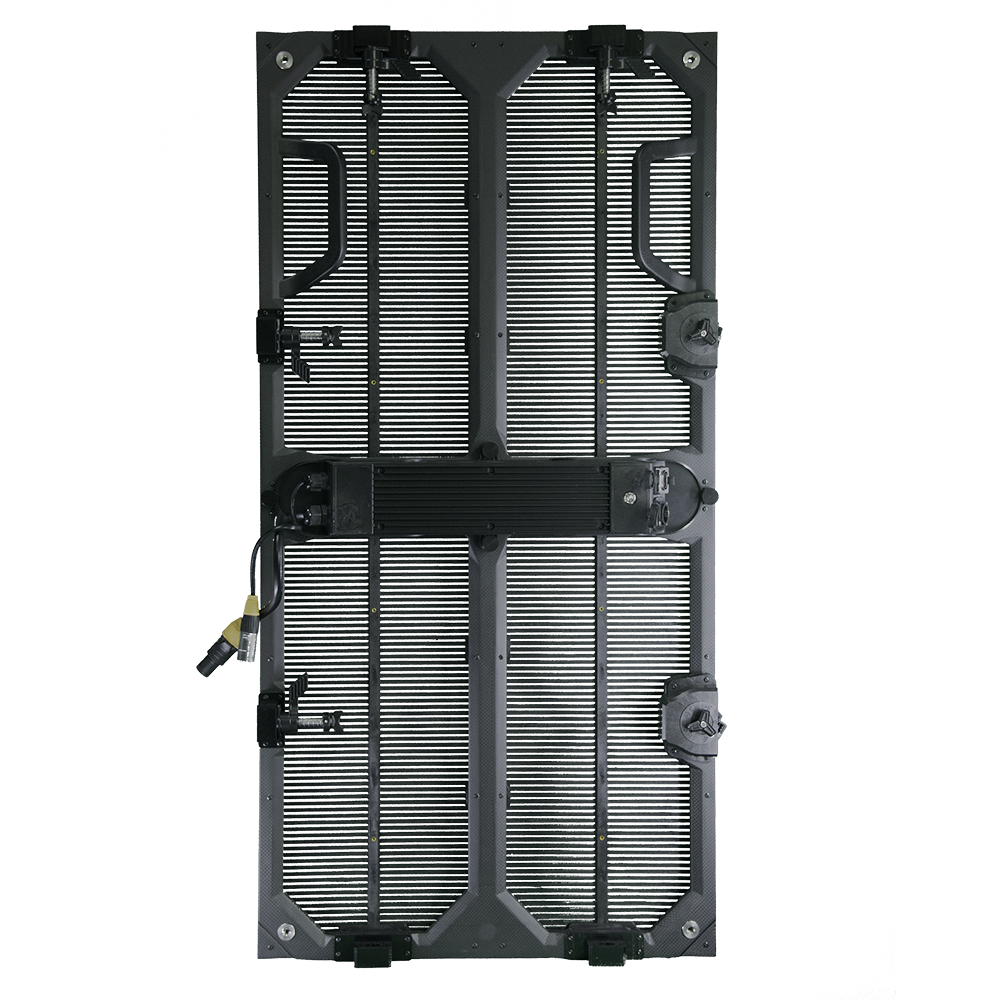

Carbon fiber cabinet
ULtra-thin and ultra-light
Strong toughness
Cabinet thickness 2cm

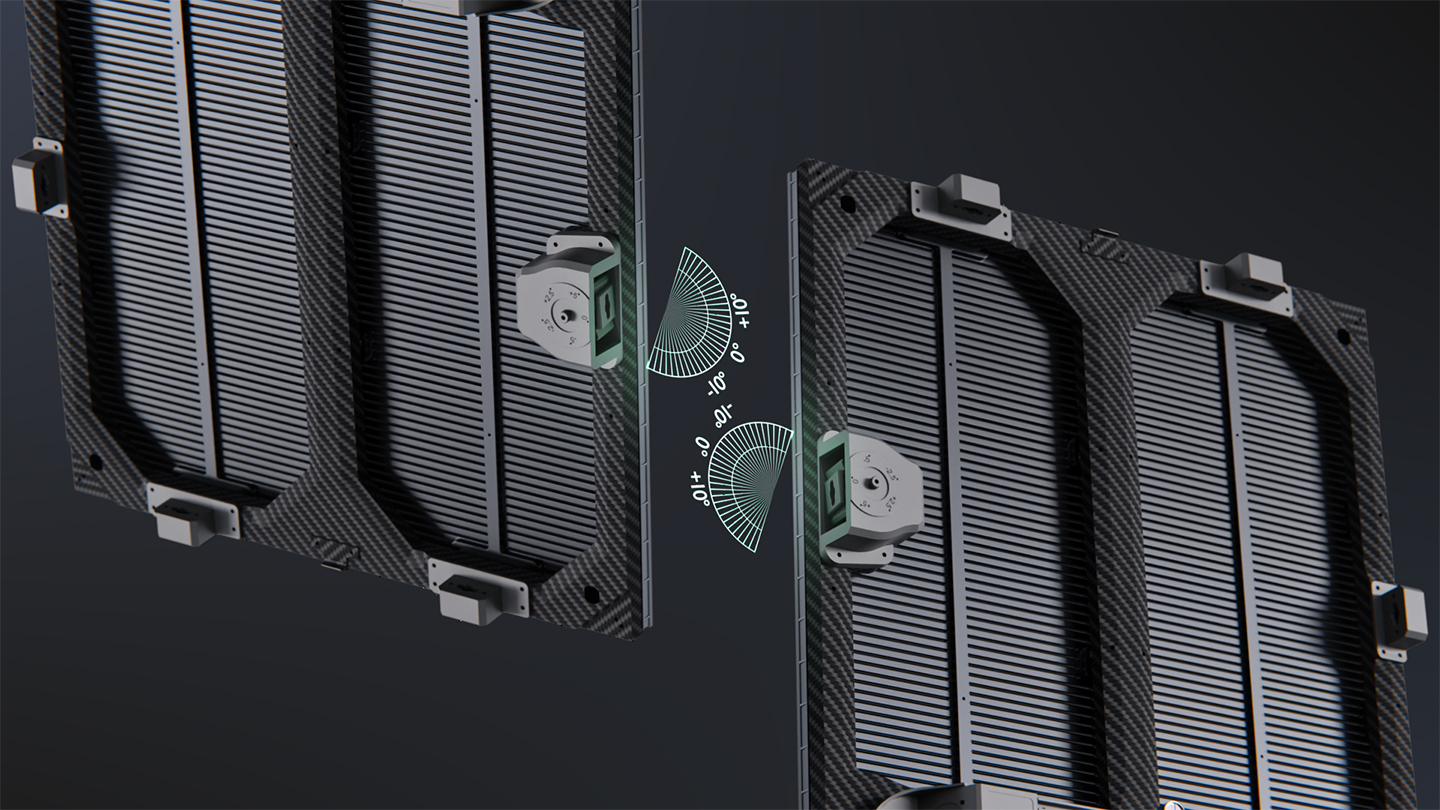

unique curve connection design
-10o, -2.5o, 0o, +2.5o, +10o
diferent angles can be set very quickly and smoothly and applied in more occation

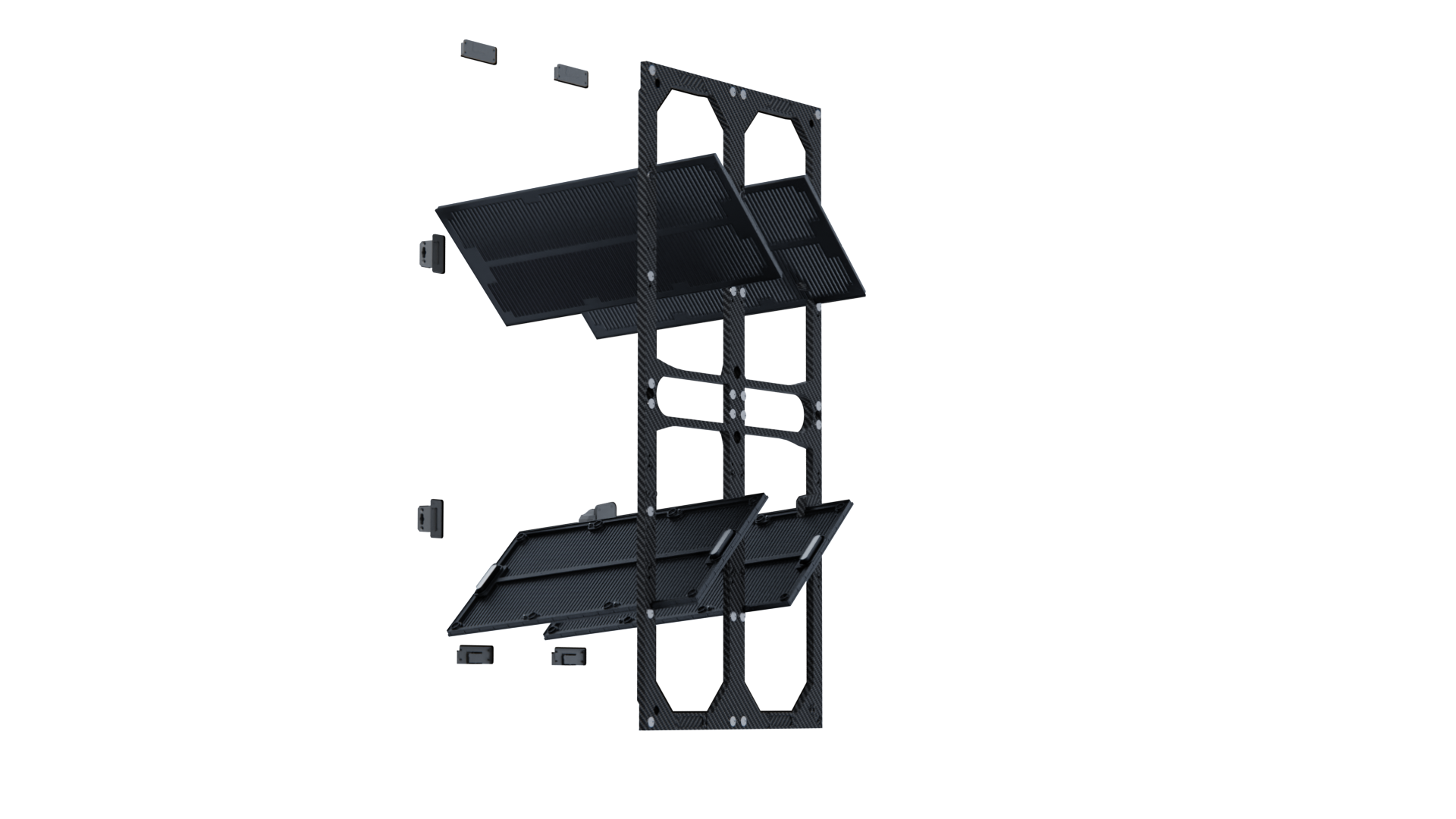

modular design
modules/cabinet frame and system box canbe taken off separaely,much easier to replace broken parts while maintaining
| No. | Items | Outdoor P6.9 | Outdoor P5.2 | Outdoor P3.9 | Outdoor P2.9 | Indoor P3.9 | Indoor P2.9 | Indoor P2.6 |
| 1 | Pixel Pitch | 6.94mm | 5.2mm | 3.91mm | 2.976mm | 3.91mm | 2.976mm | 2.604mm |
| 2 | Drive Mode | Dynamic | Dynamic | |||||
| 3 | Module Size | 250*500mm | ||||||
| 4 | Module Resolution | 36*72 | 48*96 | 64*128 | 84*168 | 64*128 | 84*168 | 96*192 |
| 5 | Cabinet Size (WXHXD) | 500*1000*20mm | ||||||
| 6 | Cabinet Resolution (WXH) | 72*144 | 96*192dots | 128*256dots | 168*336dots | 128*256dots | 168*336dots | 192*192dots |
| 7 | Transparency | ≥55％ | 0% | 0% | ||||
| 9 | Pixel Density | 20736 dots/㎡ | 36864 dots/㎡ | 65536 dots/㎡ | 112896 dots/㎡ | 65536 dots/㎡ | 112896 dots/㎡ | 147456 dots/㎡ |
| 10 | Materail | Carbon Fiber | Carbon Fiber | |||||
| 11 | Empty Cabinet Weight | 3KG | ||||||
| 12 | Brightness | ≥5000cd/㎡ | 1000cd/㎡ | |||||
| 13 | View Angle | H 140°，W 140° | H 140°，W 140° | |||||
| 14 | Best View Distance | ≥7m | ≥5m | ≥3m | ≥3m | ≥3m | ≥3m | ≥3m |
| 15 | Gray Scale | 14~16bit | 14~16bit | |||||
| 16 | Refresh Rate | ＞3840HZ | ＞3840HZ | |||||
| 17 | Frame changing frequency | 60fps | 60fps | |||||
| 18 | Input voltage | AC 86-264V/60Hz | AC 86-264V/60Hz | |||||
| 19 | Power Consumption (Max/Avg) | 800/280W/㎡ | 800/280W/㎡ | |||||
| 20 | Screen weight | 14kg/㎡ | 14kg/㎡ | |||||
| 21 | MTBF | >10,000 hrs | >10,000 hrs | |||||
| 22 | Service life | ≥100,000 hrs | ≥100,000 hrs | |||||
| 23 | IP Rate | IP65 | IP43 | |||||
| 24 | Temperature | ﹣20℃～+60℃or﹣40℃～+60℃ | ﹣20℃～+60℃or﹣40℃～+60℃ | |||||
| 25 | Humidity | 10%-85%RH | 10%-85%RH | |||||
| 26 | Control System | NOVA A5S plus | NOVA A5S plus | |||||
Our main products are all kinds of indoor and outdoor display screens. Including rental series, floor tile screen, transparent screen, small pitch, flexible screen and outdoor fixed series
If you got a project to handle, please provide below information and our experts will get back to you as soon as possible.
Our factory and headquarter are located in Shenzhen, welcome to visit and inspect the factory. All in order to make customers more worry-free and effort-saving, let us work together to create a better future.
